TEMPLATE-BASED VOID INSPECTION
HADI-InspectionMake void inspection repeatable
Build reusable inspection templates, align incoming X-ray images, and evaluate low-contrast voids with a focused desktop workflow
PRIMARY TASKVoid inspection
SETUPTemplate-based
IMAGE DEPTHUp to 16-bit
BEST FITFocused review
01 / PRODUCT FOCUS
A focused toolset for a defined inspection job
Reliable segmentation
Find weak-contrast voids across uneven backgrounds and challenging regions of interest
Clear review tools
Measure, filter, compare, capture, print, and export the evidence behind each decision
02 / CAPABILITIES
See how the work comes together

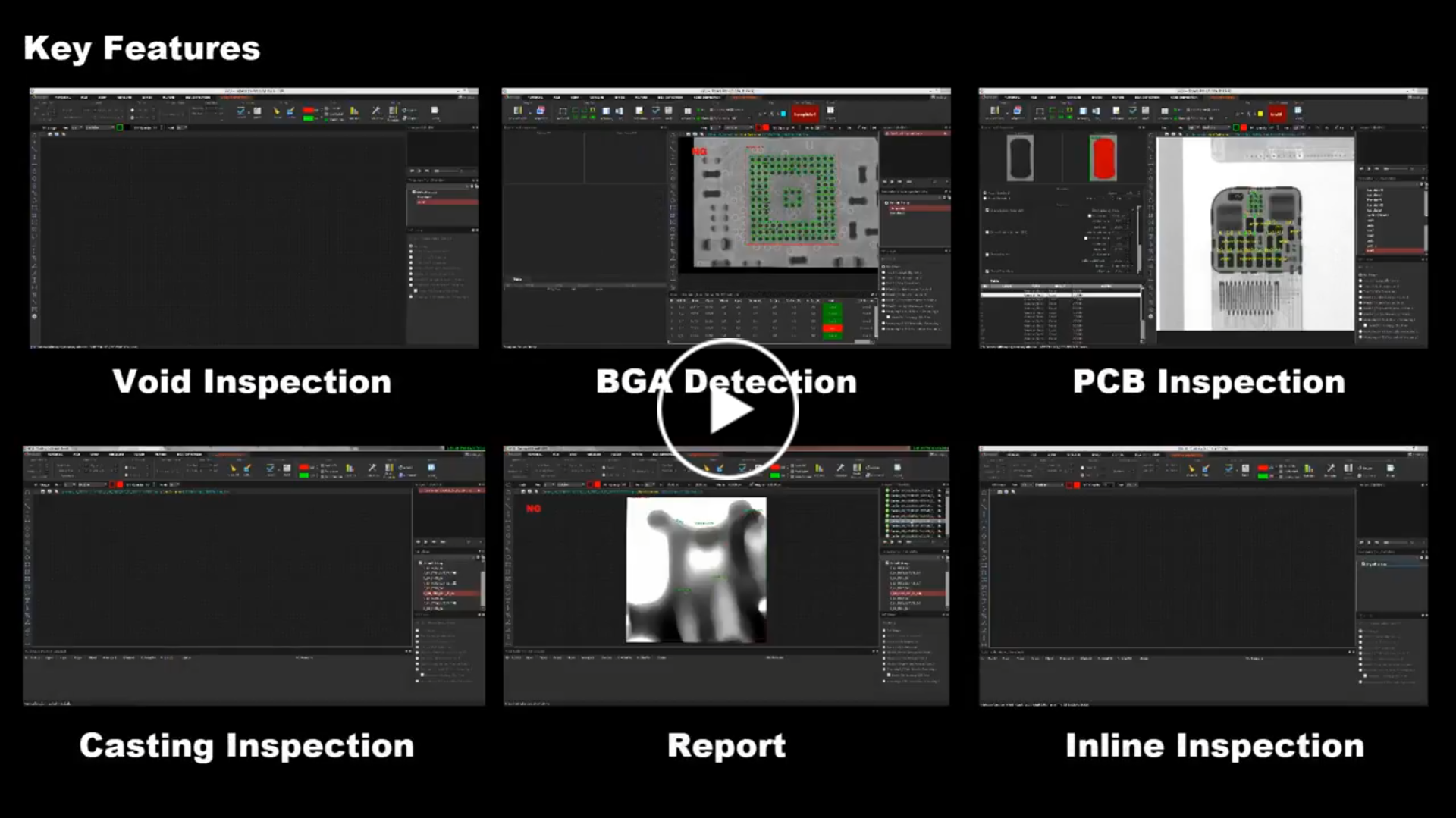

The HADI interface keeps image preparation, inspection regions, results, and supporting tools in one working environment
01
TEMPLATE WORKFLOW
Prepare the inspection once, then bring it back
HADI-Inspection organizes the regions and settings for a recurring part into a template so the next image can be evaluated against the same inspection intent
- Template creation and management
- Image alignment and calibration
- Scene import and export
02
VOID INSPECTION

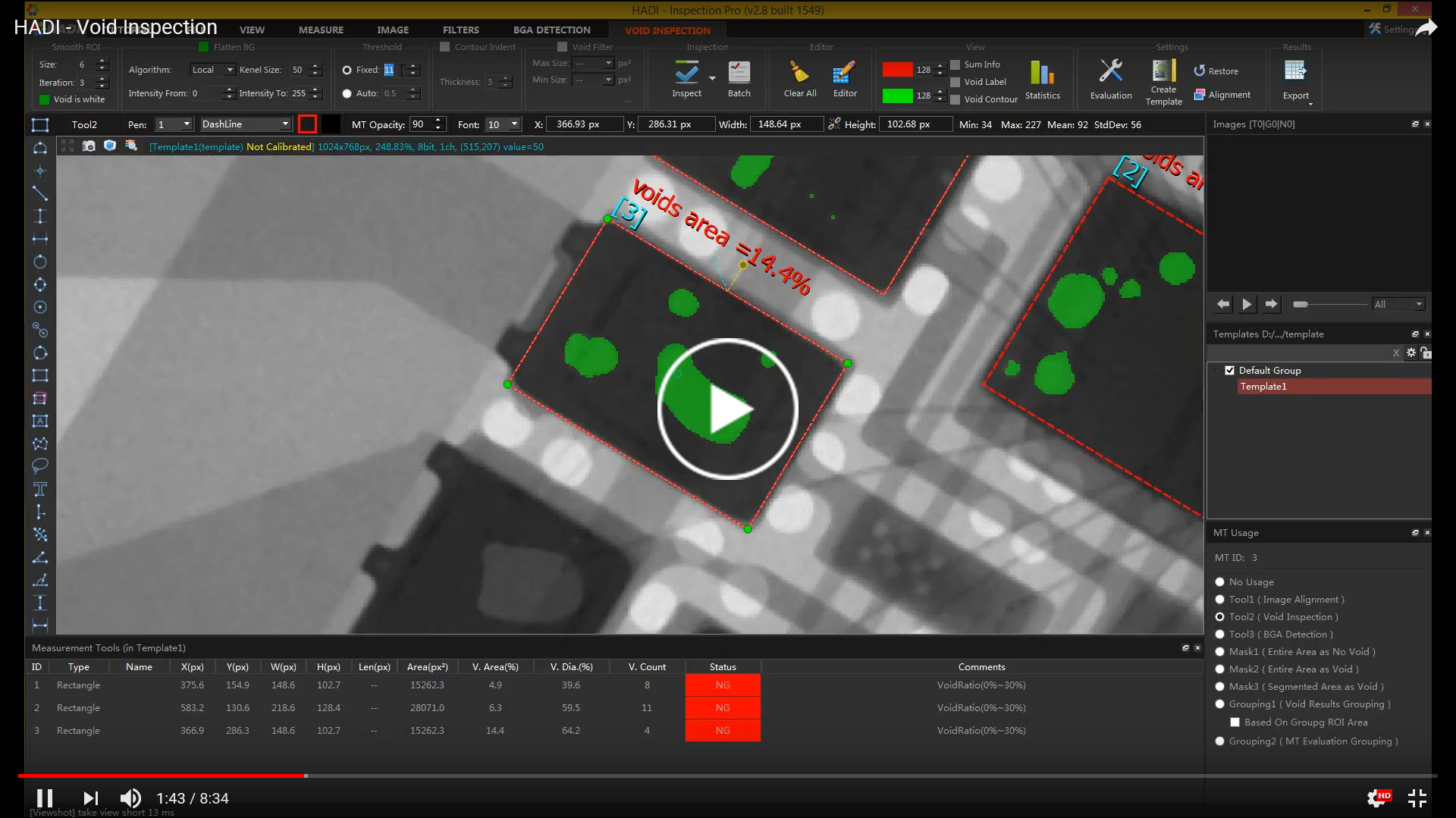

Find voids that are difficult to separate from the background
The void workflow is designed for low-contrast features, non-uniform backgrounds, and inspection regions that extend beyond the object boundary
- Weak-contrast void detection
- Inspection on inhomogeneous backgrounds
- Reduced edge leakage around large ROIs
03
IMAGE REVIEW
Support the decision with measurement and image processing
Use the shared HADI toolkit to prepare the image, measure relevant geometry, and communicate the result without moving between separate applications

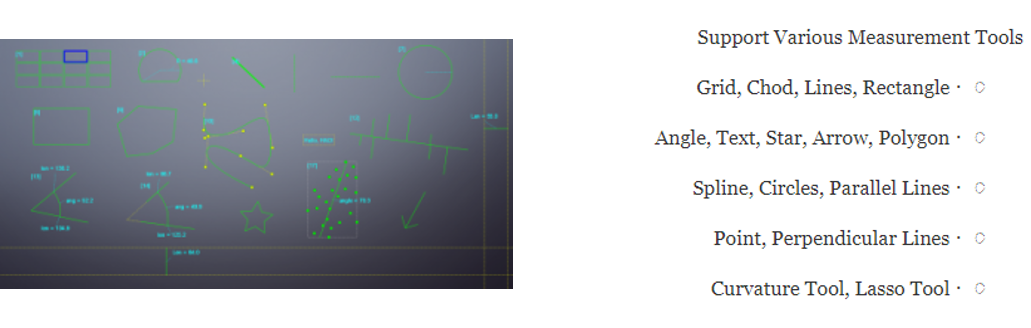

- Up to 21 measurement tools
- Up to 14 image filters
- Histogram, profile, capture, and reporting
03 / WORKFLOW
Keep the inspection path easy to follow
- 01
Load
Open the X-ray image or restore a saved scene
- 02
Align
Calibrate and align the image to the taught template
- 03
Inspect
Evaluate voids inside the defined regions
- 04
Share
Review, capture, print, or export the result
04 / SHARED HADI TOOLKIT
Core image tools included across the series
Every HADI product includes the foundational tools needed to load, prepare, measure, review, and communicate 2D X-ray images
01Image and scene import/export02Print, screen capture, and reporting03Multiple language support04Up to 21 measurement tools05Up to 14 image filters06Image calibration and alignment07Histogram and profile08Multiple-image display0916-bit image support10Image conversion11Command-line support
SOFTWARE DOWNLOADS
Ready to work with HADI-Inspection?
Find archived installers, product manuals, and the industrial software guide in one library. Check the version and license requirements before changing a production workstation.
Open software downloads
